Chip Classifier
Code: P.100.xxx
USAGE
For quick and reproducible sorting of wood chips into classes.
DEVICE DESCRIPTION
The Chip Classifier is made from a sturdy heavy metal base, with motor and control panel and integrated timer. A sieve set is mounted onto a moveable base plate, which is driven by a strong motor. The single trays, made of premium lightweight aluminum, are set on top of each other and clamped together with a quick clamping device. The movement is 120 mm and the revolving speed is 160 cycles per minute.
APPLICABLE STANDARDS
SCAN CM 40:01; TAPPI UM 21; SCAN CM 47:92
CONNECTIONS
| Electricity | 230 V, 50 Hz AC |
Other voltages on request possible
MODELS
| Code | Device |
|---|---|
| P.100.SCAN 4001 | Device with sieve set acc. SCAN CM 40:01 (see P.100.Z1) |
| P.100.TAPPI UM21 | Device with sieve set acc. TAPPI UM 21 (see P.100.Z2) |
| P.100.SCAN 4792 | Device with sieve set acc. SCAN CM 47:92 (see P.100.Z3) |
AVAILABLE SIEVE SETS
| Code | Description |
|---|---|

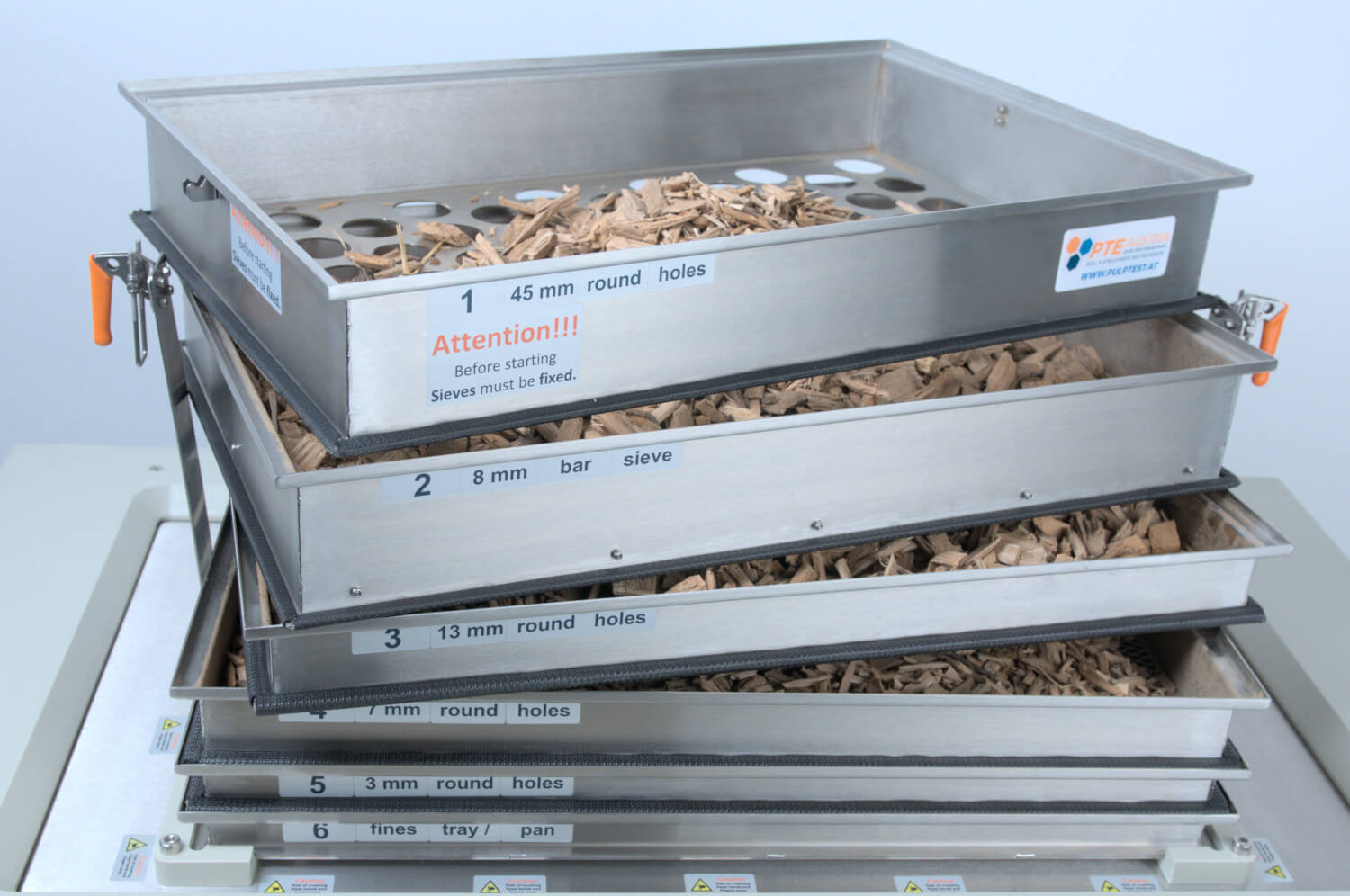

| P.100.Z1 | acc. SCAN CM 40:01 • 45 mm round holes • 8 mm bar sieve • 13 mm round holes • 7 mm round holes • 3 mm round holes • dust tray |
| P.100.Z2 | acc. TAPPI UM 21 • 45 mm round holes • 8 mm bar sieve • 7 mm round holes • 3 mm round holes • dust tray |
| P.100.Z3 | acc. SCAN CM 47:92 • 10 mm bar sieve • 8 mm bar sieve • 6 mm bar sieve • 4 mm bar sieve • 2 mm bar sieve • dust tray |
